Network slicing is transforming industrial 5G by enabling multiple virtual networks to run on shared hardware. Each slice is tailored for specific needs, such as ultra-low latency for robotics or high bandwidth for video surveillance. This approach ensures performance consistency, security, and resource efficiency.
By combining advanced technologies and a multi-layer architecture, network slicing supports automation, logistics, and critical infrastructure, making it a cornerstone for Industry 4.0. This article dives into its architecture, use cases, and implementation.

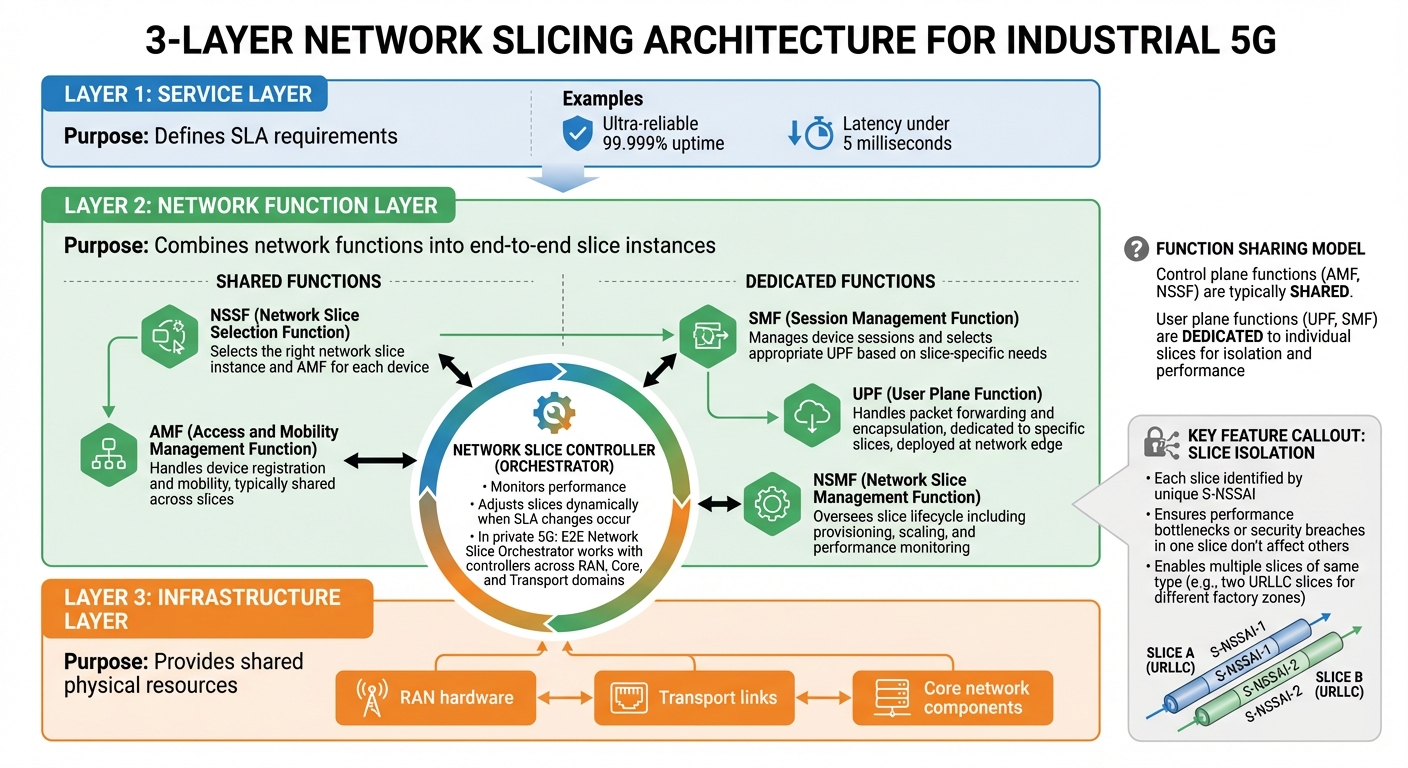

3-Layer Network Slicing Architecture for Industrial 5G
To fully tap into the performance potential and isolation capabilities of industrial 5G, a well-defined architectural framework is crucial. Network slicing uses a layered structure to create independent virtual networks, all running on shared physical hardware. This structure is the backbone of network slicing models.
The network slicing framework consists of three layers:
A Network Slice Controller, also known as an Orchestrator, oversees these layers. It monitors performance and adjusts slices dynamically when SLA changes occur. In private 5G setups, the E2E Network Slice Orchestrator works with controllers across RAN, Core, and Transport domains to automate slice creation and ensure smooth operation. For example, if a factory introduces new autonomous guided vehicles, the system automatically allocates the necessary low-latency resources.
Slice Isolation is a critical feature of this architecture. It ensures that issues like performance bottlenecks or security breaches in one slice don’t affect others sharing the same physical setup. Each slice is identified by a unique S-NSSAI, enabling operators to run multiple slices of the same type – such as two URLLC slices for different factory zones, each with distinct security protocols.
Various 5G network functions work together to maintain the performance and isolation of network slices:
Control plane functions, like AMF and NSSF, are generally shared across slices, while UPF and SMF tend to be dedicated to individual slices for better isolation. Separating the User Plane from the Control Plane allows UPF deployment at the network edge, which is especially beneficial for latency-sensitive industrial tasks. For instance, placing the UPF at a local edge ensures that data traffic remains within the factory, preserving both speed and data privacy.
This structured architecture is the backbone of industrial 5G applications, supporting everything from automated manufacturing to advanced logistics. These components and design choices are key to enabling the industrial use cases discussed in the next section.
Network slicing, based on the layered architecture discussed earlier, brings measurable advantages across various industries. Here’s how it’s applied in key sectors.
Modern factories rely on low latency and high reliability, which dedicated 5G slices can deliver. With network slicing, Service Level Agreements (SLAs) for latency, jitter, and uptime are guaranteed, offering reliability comparable to wired industrial Ethernet solutions. A single 5G network can handle diverse tasks simultaneously: supporting thousands of low-power sensors (mMTC), high-speed quality control cameras (eMBB) with uplink speeds between 50 Mbps and over 1 Gbps, and ultra-reliable motion control for robotic systems (URLLC).
These capabilities translate into tangible improvements. For instance, slicing reduces latency from around 28 ms to 8 ms, while jitter drops from 12 ms to just 2 ms. This directly impacts operations: Overall Equipment Effectiveness (OEE) can rise from 68% to 78%, and defect rates can decrease from 950 parts per million to 420 parts per million when machine vision systems leverage slicing. Additionally, resource isolation ensures high-bandwidth streams don’t interfere with critical control signals. Modular assembly lines also benefit, as Autonomous Guided Vehicles (AGVs) dynamically navigate factory floors with low-latency resource allocation, cutting retooling times from months to days.
Warehouses face unique challenges, such as dense device environments, interference-heavy materials, and the need to manage both safety-critical systems and extensive sensor networks. Network slicing addresses these demands by offering URLLC slices for autonomous robots and mMTC slices to support up to 1,000,000 devices per square kilometre for precise inventory tracking.
One example comes from a smart warehouse demonstration, where interference-resistant slicing enabled robotic inventory management across a 440-pallet system. Robots adjusted routes without delay, supported by over 40 integrated components, achieving what Supplychain360 called "synchronised execution".
Traffic isolation plays a critical role. As Jincan.net explains:
"Isolation ensures that the massive data upload from the cameras never creates lag for the safety-critical AGVs".
By deploying local User Plane Functions at the network edge, facilities minimise delays for decisions like obstacle avoidance while keeping data processing within the premises. Beyond warehouses, sectors like energy and transport are also applying slicing to secure vital operations.
Energy grids and ports require extremely high reliability, with URLLC slices achieving 99.9999% reliability and packet error rates as low as one in a million. For smart energy systems, slicing enables tele-protection, which isolates faults in high-voltage substations within milliseconds, preventing cascading blackouts. This requires ultra-low latency (less than 1 ms over the air and under 5 ms end-to-end) and exceptional reliability.
Hard slicing using Flexible Ethernet (FlexE) creates dedicated lanes on the same fibre optic cable, preventing issues like buffer bloat and queuing delays. This ensures that a cyberattack or broadcast storm on a guest Wi-Fi slice won’t affect critical infrastructure. As energy grids adopt renewable sources with bidirectional energy flows, slicing has become essential for managing fault isolation in milliseconds while maintaining the flexibility of wireless networks.
These tailored performance and isolation principles extend to other sectors. For example, in ports and airports, private 5G solutions from companies like Firecell enable cargo tracking, autonomous vehicle fleets, and security systems to operate simultaneously, each with specific performance needs, all on a shared physical network.
Practical implementation of network slicing builds upon the architectural framework, focusing on precise slice design, efficient resource allocation, and robust management.
The process begins with defining slice requirements through a Generic Slice Template (GST), which is then translated into a ServiceProfile and a SliceProfile for the RAN, Core, and Transport domains.
Each domain demands specific configurations:
Efficient resource allocation is key. Convex frameworks optimise power consumption while meeting latency, jitter, and reliability goals. Admission control mechanisms help manage power use by relaxing target rates for best-effort slices where necessary. Assurance Closed Control Loops (ACCLs) ensure Service Level Agreements (SLAs) are maintained by continuously monitoring and adjusting resources.
Network slicing management follows the 3GPP lifecycle phases: Preparation, Commissioning, Operation, and Decommissioning. A Network Slice Controller oversees coordination across the service, network function, and infrastructure layers, leveraging Software-Defined Networking (SDN) and Network Functions Virtualisation (NFV).
The shift towards intent-driven management allows operators to define high-level business goals, with the system automatically configuring slices to meet those objectives. Management Data Analytics (MDA) plays a crucial role, using historical and real-time data to predict traffic and optimise resource provisioning. Additionally, 3GPP Release 17 introduced Energy Efficiency (EE) KPIs, which measure the ratio between slice performance and energy consumption.
For industrial applications, deploying the User Plane Function (UPF) on-site using Mobile Edge Computing ensures ultra-low latency and data sovereignty. This approach keeps sensitive industrial data within the facility and achieves URLLC (Ultra-Reliable Low-Latency Communication) targets of under 5 ms. Such measures are essential for ensuring the stability of industrial processes.
Security is paramount, requiring multi-layer isolation across the RAN, Transport, and Core domains to prevent inter-slice interference and unauthorised access. For critical applications, "hard slicing" with FlexE ensures physical layer isolation, preventing traffic bursts in one slice from affecting others.
To guard against side-channel attacks, critical slices can be pinned to dedicated CPU cores and memory blocks. Network Slice Specific Authentication and Authorisation (NSSAA) adds another layer of security by requiring devices to authenticate with slice-specific credentials, independent of primary network authentication.
Data leaving industrial routers should be encapsulated using IPsec or OpenVPN tunnels to secure transmissions. Firewalls and Intrusion Detection Systems must be "slice-aware", capable of inspecting traffic using Single Network Slice Selection Assistance Information (S-NSSAI) tags instead of relying solely on IP addresses. Protecting the APIs used for slice creation and modification involves employing mutual TLS (mTLS), Identity and Access Management (IAM), and regular auditing.
Network slicing transforms industrial 5G from simple connectivity into a versatile platform that ensures consistent performance across various applications. This shift is crucial for maintaining uninterrupted operations in industrial settings.
The foundations of isolation, customisation, and guaranteed SLAs are key to enabling Industry 4.0. Whether it’s managing 1,000,000 devices per square kilometre with mMTC slices or delivering 99.9999% reliability for robotic motion control through URLLC, network slicing meets demands that earlier cellular technologies simply couldn’t address. However, achieving these outcomes requires careful management throughout the entire lifecycle.
To turn technical possibilities into practical benefits, collaboration between IT and OT teams is essential. Initiatives like cross-training – where OT staff learn about IP routing and virtualisation, and IT engineers gain insights into industrial safety – bridge the knowledge gap. Combined with intent-driven management and Assurance Closed Control Loops, these efforts reduce manual input, enabling networks to dynamically adjust resources and maintain service quality.
Security plays a critical role at every level. Treating cellular networks as untrusted transport and using measures like IPsec or OpenVPN tunnels safeguards industrial data. Additionally, Network Slice Specific Authentication and Authorisation ensures that vulnerabilities in less secure slices don’t compromise critical systems. For physical layer isolation, technologies such as FlexE provide much-needed security.
Private 5G networks also complement public slicing, particularly for mobile scenarios like logistics vehicles that move between private factory zones and public roads. Looking ahead, energy efficiency is becoming a bigger focus. With 3GPP Release 17 introducing Energy Efficiency KPIs and Release 19 targeting energy utility integration, network slicing continues to adapt to the complex demands of industrial environments.
Network slicing strengthens security in industrial 5G networks by creating isolated virtual networks that function independently within the same physical setup. Each slice is tailored to meet specific security requirements, providing strong safeguards for sensitive data and critical operations.
This isolation of traffic reduces the chances of unauthorised access or interference between slices. Additionally, network slicing allows advanced security features – like customised authentication protocols and encryption – to be applied to individual slices, ensuring they align with strict industrial security standards.
The Network Slice Controller plays a key role in managing and fine-tuning network slices. It handles their creation, keeps track of their performance, and ensures they meet Service Level Agreements (SLAs) and key performance indicators (KPIs).
By allocating resources dynamically and resolving potential problems as they arise, the controller guarantees that each slice provides the performance and reliability needed. This level of precision is especially crucial for industrial applications such as autonomous robots, manufacturing processes, or logistics operations.
Network slicing improves energy efficiency in industrial 5G networks by allowing resources to be allocated specifically to certain applications or devices. This focused allocation helps cut down on wasted energy and ensures network functions are active only when and where they are required.
With its ability to manage resources dynamically, network slicing fine-tunes energy use across different industrial processes, from manufacturing to logistics. This approach not only lowers operational expenses but also supports greener and more sustainable practices within industrial settings.
