Pegasus Mid Power 100 MHz

Firecell Pegasus is a private 5G network composed of indoor and outdoor radios for production deployments.

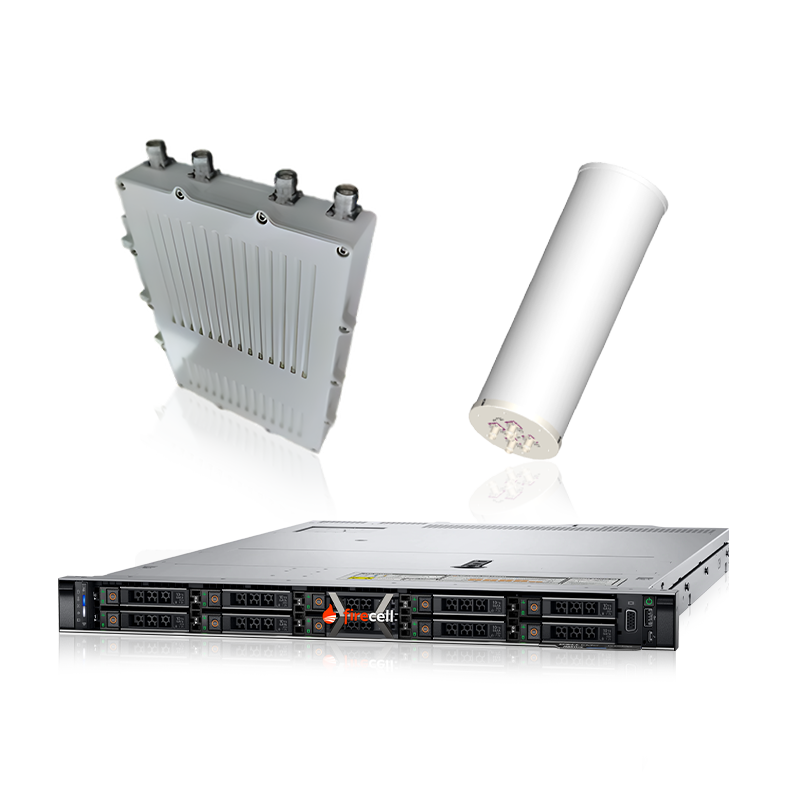

Hardware included: Core Network Server + Mid power radio unit + gNodeB server + omnidirectional or directional antenna
Coverage: 300 – 1000 m / 0.2 – 0.6 miles radius
5G SA
Max devices: 1000
Simultaneous connections: 64
Max bandwidth: 100 MHz
Firecell Network Management System compatible
Downlink throughput per cell : 800 Mbps
Uplink throughput per cell : 80 Mbps

Get a quote

Contact a tech expert

Services

Remote Support Level 1, 2 & 3

Software upgrades

24/7 remote support level 1 (from SI partner)*

Installation & Commissionning

Managed Service

Radio Planning

Training

Hardware Warranty

Optional

1 year

Technical specifications

Core Network Server

Dimensions H x W x D

44 mm x 482 mm x 540.5 mm

CPU

Intel Core i9 2.4 GHz

RAM

32 GB

Storage

SSD 500 GB

Network connectivity

1 x 2.5 GbE, 4x SFP+ 10 GbE

Power supply voltage input

100 - 240V AC

Operating system

Linux Ubuntu 20.04 LTS with 5.4.0-126-lowlatency kernel

Radio Unit

Dimensions H x W x D

370 mm x 369.2 mm x 91.3 mm

Weight

15 kg

Frequency bands

n77 (3800-4000 MHz) or n78 (3400-3800 MHz)

Bandwidth

up to 100 MHz

Max transmitted power

4 x 2W

Operating Temperature Range

-40 °C to +55 °C

IP Rating

IP 66

Regulatory

CE (Europe), RoHS, WEEE, REACH (UK)

Antenna

Omnidirectional or Directional

Power supply

100 - 240V AC

Power consumption

Max 200W

Active Users

3GPP Release

Release 16

Installation

Mounting bracket (included)

5G Core Network Software

3GPP release

Release 16

Modules

SMF, AUSF, UDM, AMF, UPF

Container

Docker
