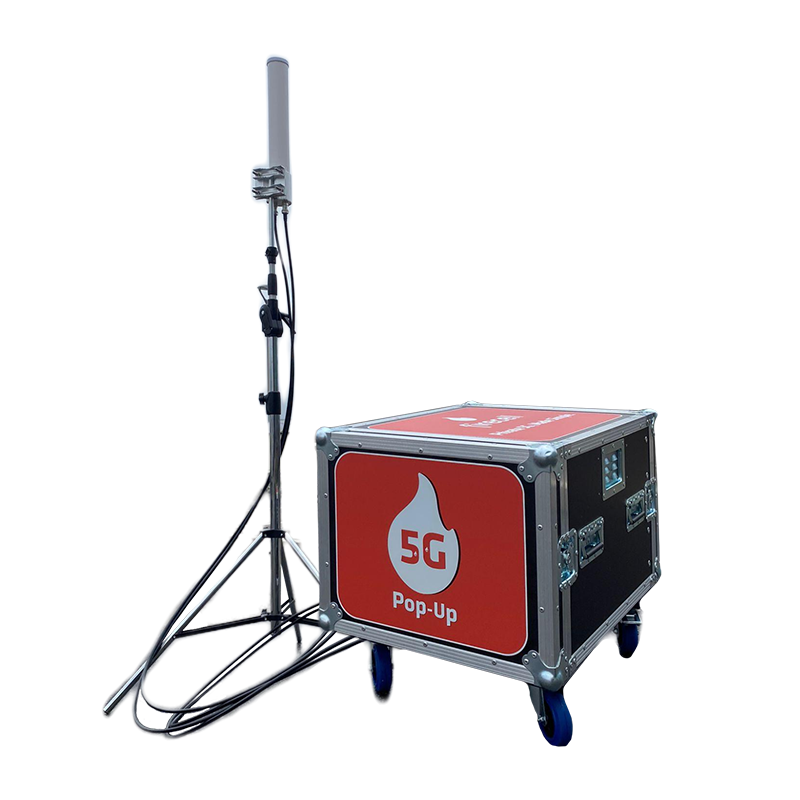

Pegasus Mid Power Pop-Up 40 MHz

Pegasus Mid Power Pop-Up 40 MHz

Mid Power mobile private 5G network for outdoor and indoor use:

  • 2x5W at 40 MHz in 2×2 MIMO
  • 5G Core Network, gNodeB, 5G smartphone and high gain antenna.
  • Uninterruptible Power Supply

Available for the following frequency bands: n38

Contact a tech expert

Services

Standard support and maintenance package is mandatory for the first year.

Software upgrades
Online Training
Hardware Warranty
Remote Support Level 1, 2 & 3
Standard support
Optional
1 year

Technical specifications

5G Core Network Server

Dimensions H x W x D
1U half-depth chassis (44 x 482 × 540.5 mm)
CPU
Intel Core i9 2.4 GHz
RAM
64 GB
Storage
SSD 500 GB
Network connectivity
1 x 2.5 GbE / Intel NIC 710 with 4x SFP+ 10 GbE slots
Power supply voltage input
100 - 240V AC
Operating system
Linux Ubuntu 20.04 LTS with 5.4.0-126-lowlatency kernel

5G Radio Access Network Server

Dimensions H x W x D
1U half-depth chassis (44 x 482 × 540.5 mm)
CPU
Intel Core i9 2.4 GHz
RAM
64 GB
Storage
SSD 500 GB
Network connectivity
1 x 2.5 GbE, 4x SFP+ 10 GbE
Power supply voltage input
100 - 240V AC
Operating system
Linux Ubuntu 20.04 LTS with 5.4.0-126-lowlatency kernel
Synchronisation
GPS
Active Users
32

Mid Power Radio Unit

Dimensions H x W x D
72.5 mm x 369.2 mm x 404.6 mm
Weight
7 kg
Frequency bands
n38 (2570-2620 MHz)
Bandwidth
40 MHz 2x2 MIMO
Max output power
4 x 5W
Operating Temperature Range
-40 °C to +55 °C
IP Rating
IP 65
Regulatory
CE (Europe), RoHS, WEEE, REACH (UK)
Antenna ports
2x 4.3/10 DIN Female

5G Smartphone

Brand & Model
Crosscall Core-Z5
Dimensions H × W × D
175 x 81 x 14 mm
Weight
281 g
5G Frequency bands
n38 (2600MHz) / n40 (2300MHz) / n77 (3700MHz) / n78 (3500MHz)
Operating System
Android 12
Processor
Qualcomm® QCM6490
Head/Body
SAR 1,5 W/kg - 1,03 W/kg
SAR Limbs
2,63 W/kg
RAM
4 GB
Flash
64 GB
IP Rating
IP 68
Resistance
salt water (2 m / 30 min), dust (IP 68), falls (6 faces, 2m on concrete)
SIM card
rewritable, unique IMSI, MILENAGE authentication algorithm, PLMN: 999.99

5G Core Network Software

Network functions
SMF, AUSF, UDM, UDR, AMF, UPF, NSSRF, NRF, PCF
Container platform
Docker

5G Radio Access Network Software

Frequency bands
n38 (2600MHz) / n40 (2300MHz) / n77 (3700MHz) / n78 (3500MHz) / n79 (4800 MHz)
Bandwidth
40/100 MHz
Transmission Modes (downlink)
SISO, 2x2 MIMO
Modulation schemes
Up to 256 QAM
Subcarrier spacing
30 kHz

5G Network Management System software

Dashboard
Core & Cell status, global number of active / connected devices, global downlink & uplink bit rate / resource consumption, detailed list of cells
Cell metrics
Downlink & uplink bit rate / resource consumption, number of connected devices
SIM management Add SIM, device status (online, offline)
User management
Add, remove, manage user profiles (Standard, Expert, Admin)
QoS management
Priority configuration of streams (IP / port range)
Logs
User connections
