Pegasus-Netzwerk

Outdoor and large indoor private 5G network, up to 100 MHz, for scalable industrial wireless connectivity.

Video

Startseite > Pegasus 5G

Stellen Sie Ihr privates 5G-Netzwerk bereit

Pegasus Network eignet sich perfekt für die Bereitstellung zuverlässiger und sicherer drahtloser Konnektivität für intelligente Fertigung, Universitätsgeländen, Logistikanwendungen wie Kommissionierung und automatischen Lagerhäuser, sowohl drinnen als auch draußen.

Set up your own 5G network across your warehouses, factories, offices or campus

Connect hundreds of devices: smartphones, tablets, robots, AGVs, industrial routers, cameras, smart tools and barcode readers

Provision SIM and e-SIM cards, and allocate QoS priorities to each type of stream so traffic stays smooth across all your applications

Monitor bit rate, resource use and connected devices for every radio, from an interface built for IT administrators

Verlassen Sie sich auf unsere Partner vor Ort, die Sie bei der Installation und der täglichen Verwaltung des Netzes unterstützen.

Vollständig und kostengünstig

Pegasus Network is a turnkey solution, ready to deploy. Firecell builds, tests and maintains the whole 5G software, including the 5G Core, Radio Access Network and Network Management System, and pre-integrates it with industry-grade hardware optimised for connectivity.

It is a single solution for any deployment: All-in-One, vRAN or Pico architecture, installed and integrated on your premises by a System Integrator after radio planning of the area to be covered.

Pegasus-Netzwerk

Pegasus Network is composed of the Firecell 5G Core and Network Management System running on a single server, RAN software, and multiple radio units and antennas, combined according to the architecture your site requires.

Frequenzbänder

Maximale Bandbreite

SISO / MIMO

Maximale Downlink-Bitrate

Maximale Uplink-Bitrate

Synchronisierung

Ausgangsleistung

Länder

Erfassungsbereich

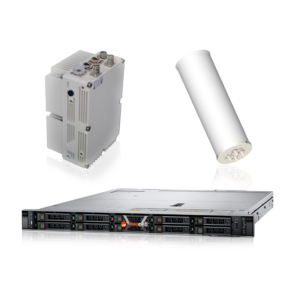

Pegasus High Power 20 W

n38

40 MHz

2x2 MIMO

320 Mbit/s

32 Mbit/s

K.A.

2x20W

Germany, Sweden, Netherlands

1000 - 5000 m

Kontakt

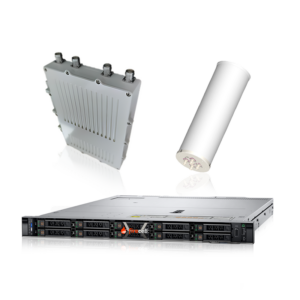

Pegasus Mid Power 100 MHz

n48, n77, n78, n79

100 MHz

SISO, 2x2 MIMO, 4x4 MIMO

1350 Mbps

140 Mbps

GPS

4x5W

Brazil, Netherlands, Croatia, Sweden, Switzerland, Australia, France, UK, Poland, Belgium, Spain, Norway, Canada, Japan, South Korea, Taiwan (n79)

300 - 1000 m

Kontakt

Pegasus Mid Power 40 MHz

n38

40 MHz

SISO, 2x2 MIMO

320 Mbit/s

32 Mbit/s

GPS

4x5W

Frankreich

300 - 1000 m

Kontakt

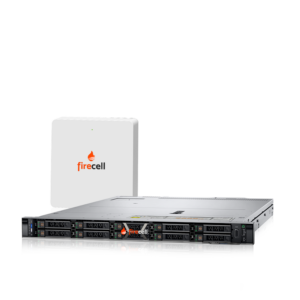

Pegasus Low Power

n48, n77, n78, n79

100 MHz

SISO, 2x2 MIMO, 4x4 MIMO

1350 Mbps

140 Mbps

GPS

4x250 mW

Croatia, Switzerland, Poland, USA, Brazil, Netherlands, Sweden, Australia, France, UK, Belgium, Spain, Norway, Germany, Canada, Japan, South Korea, Taiwan (n79)

30 - 100 m

Kontakt
